KMP: Roll your own mobileMain

The increasing expansion of the Kotlin Multiplatform (KMP) and Compose Multiplatform (CMP) support for Android Studio has made the development a breeze.

In some rare cases our trusty tools are not there yet.

For instance until last year the inability to preview Composables in commonMain, or the lack of a new project template (also not the case anymore).

Recently, I hit one such wall and at the same time discovered there’s a new experimental tool to solve it! Let’s see it.

The default KMP Hierarchy template.

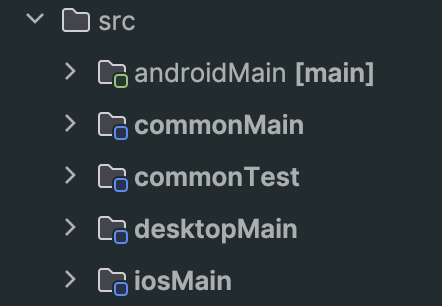

Every new KMP project has the following barebones hierarchy template:

Lets say we want to have some common code only for the mobile platforms (iOS and Android).

The documented way to do that is the following:

// build.gradle.kts (:composeApp)

plugins {
    alias(libs.plugins.kotlinMultiplatform)
}

kotlin {
    // ... define the targets

    sourceSets {
        commonMain {
            dependencies {
                // ...
            }
        }

        val mobileMain by creating
        mobileMain {
            dependsOn(commonMain.get())
            dependencies { implementation(libs.some.lib) }
        }

        iosMain {
            dependsOn(mobileMain.get())
        }

        androidMain {
            dependsOn(mobileMain.get())
        }
    }
}

Lets note here that we also need to create the directory /myProject/composeApp/src/mobileMain/kotlin.

This works just fine! The project builds, runs the common code in mobileMain and we’re all happy.

So .. what’s the deal then.

The deal

The IDE does not treat the mobileMain as a first-class source set like commonMain, androidMain etc.

We don’t get the context menu to define an actual implementation for an expect. And any other source set dependent IDE functionality.

The seal 🦭

Enter applyHierarchyTemplate().

The new experimental way to define source sets in a flexible and intuitive way, and significantly improves IDE awareness.

In our simple case above the equivalent is now:

kotlin {
     applyHierarchyTemplate(KotlinHierarchyTemplate.default) {
        common {
            group("mobile") {
                withAndroidTarget()
                group("ios") {
                    withIosArm64()
                    withIosX64()
                    withIosSimulatorArm64()
                }
            }
        }
    }

    // ...
}

Which now produces a more IDE friendly integration, with the expected module awareness and its side effects.

The extent to which we can configure the project is very flexible and built in a way that does not mess with the default hierarchy.

For more: see the documentation of the hierarchy builder. Also, good to have in mind the complete default hierarchy template, with all the targets you can group together.

Happy KMPing!
